Possibility of using chassis in different brands, models and configurations
Ballistic protected cabin including all-round windows (FB4+, Class6, BR4)
Ballistic protected fuel tank, alternator and air tubes (FB4+, Class6)

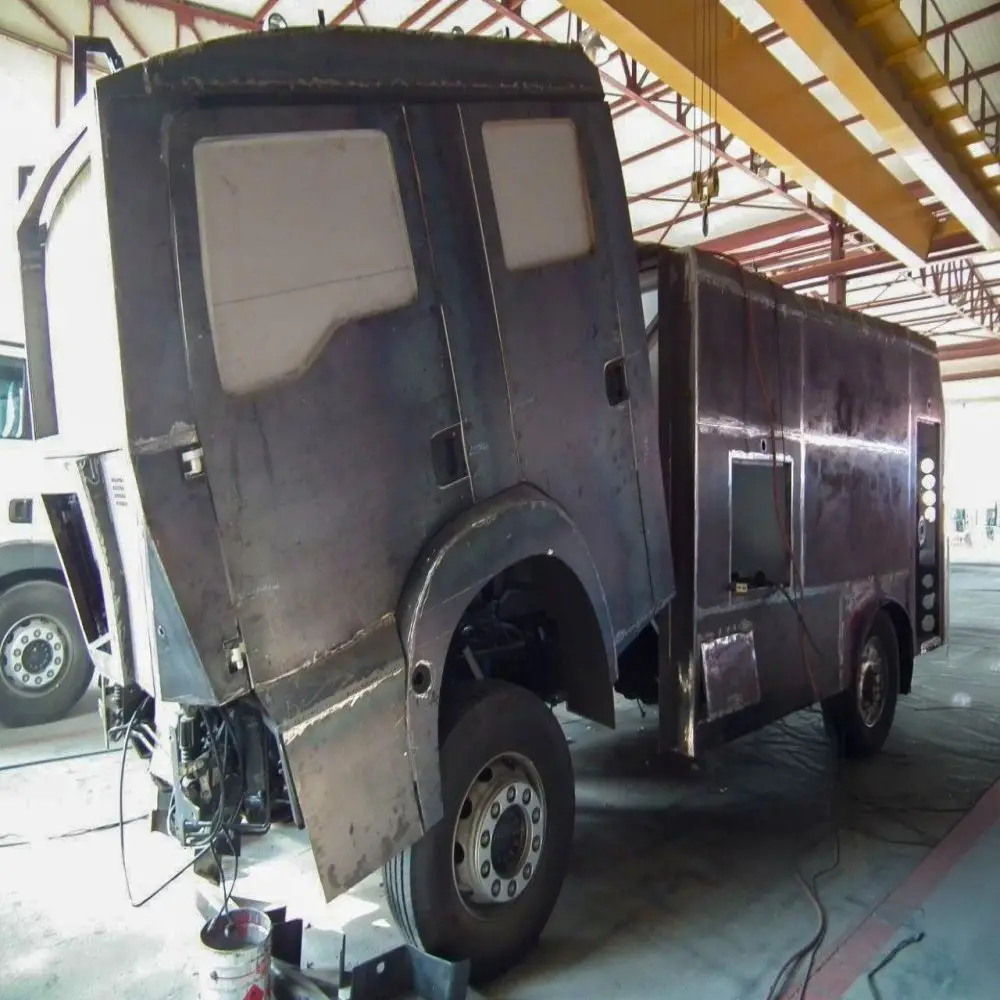

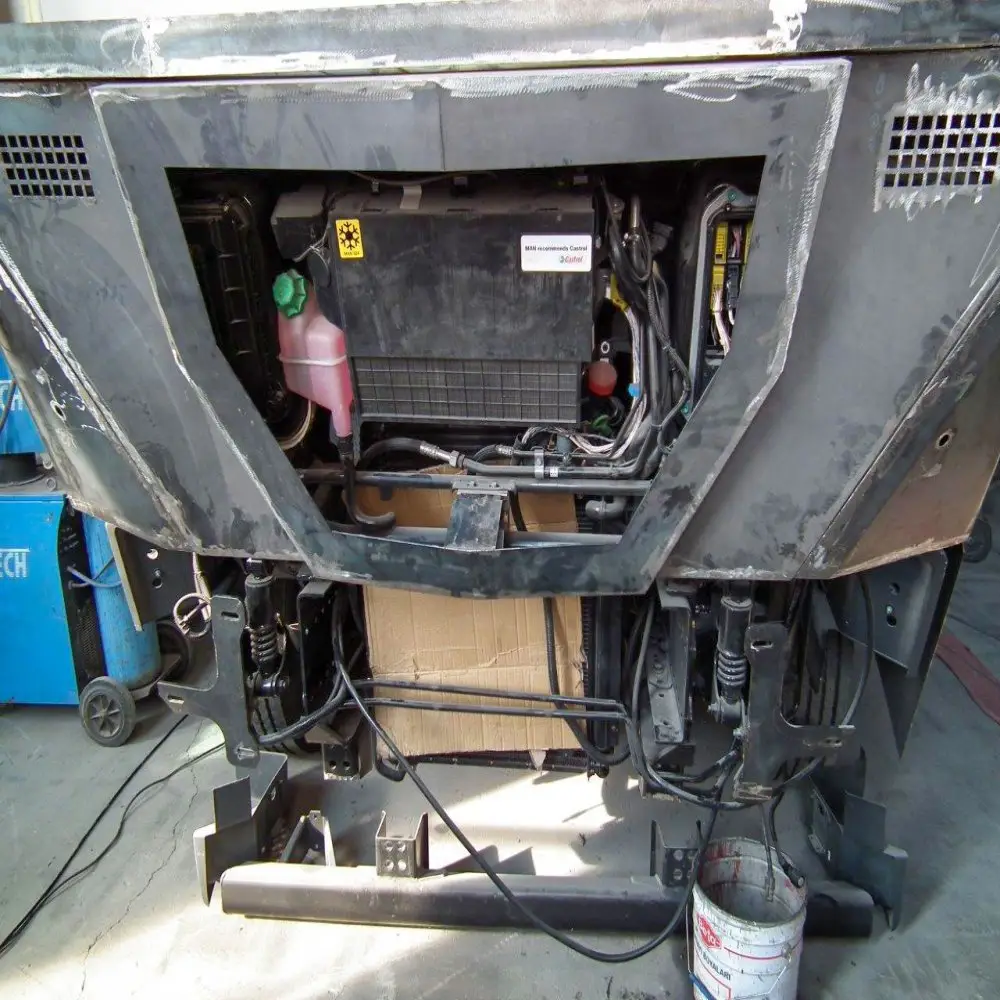

Armored body structure against impact
Protection cage for bulletproof windows, headlights, escort lamp, projectors, cameras and special accessories
Special polycarbonate transparent material that does not block the vision under the headlight and mirror group cage for stone and impact protection
Internally controlled protection cage on the windshield
Control of all systems by computer and software
2 water cannon control panels that can be adjusted according to the operator and provide ergonomic use
10” touch screens on the water cannon operator control panel where operators can make all controls
Thanks to 10” touch screens, operators can precisely monitor all liquid amounts, water ball positions and easily enter parameters.
Comfortable and ergonomic data monitoring thanks to 10” touch screens
Possibility to change camera settings on water cannon from 10” touch screens
Thanks to the 7” TFT LCD screens on the water cannon operator control panel, the ability to monitor the area to be watered and the ability to auto-focus the image by approaching and moving away from the target with the ZOOM+ / ZOOM- keys on the joystick.
Disabling water cannon without selecting shot type to prevent unintentional use
Recording the actions related to vehicle use as date and time during the intervention and monitoring them later on the touch screen
In case of emergency, stopping the second engine and stopping the system with the "EMERGENCY STOP" button
Recording water cannon camera images with a mobile DVR device (Optional; Perimeter cameras)
The possibility of backing up and watching the images recorded with the mobile DVR device with the LCD screen of the device
With two 10” LCD TVs in the front of the cabin, the driver and the vehicle supervisor can watch the four sides of the vehicle.
Water polo operators can watch environmental cameras thanks to 7” TFT LCD screens placed on the headrests of the driver and vehicle supervisor.
High-capacity camera hardware
front area camera
rear area camera
Side area cameras (right and left areas)
Monitor cameras (right and left monitor)
Possibility of throwing water from the water ball in different ways
short pulse shot
long pulse shot
continuous shot
Possibility to change the firing times and impact interval times of pulsed shots made with water cannon in seconds
High-ability water cannon range (60-70 meters)
Liquids sprayed from water cannon in different combinations
water shot only
Water + Paint shot
Water + Gas shot
Water + Gas + Paint shot
Water + Fire fighting foam (synthetic foam) shot
Heating equipment with thermostat against freezing in all liquid tanks (water, gas, paint, foam)
High tank capacities
Water tank capacity 6000 liters
Gas tank capacity 100 liters
Paint tank capacity 100 liters
Foam tank capacity 150 liters
Water absorption equipment (filling the water tank with the ability to absorb water from a depth of 7.5 meters)
Vehicle defense and protection systems
Fire protection with on-vehicle and under-vehicle fire extinguishing foam system
Gas nozzles located all around the vehicle to prevent demonstrators from approaching the vehicle
Cleaning with a special water spray system for vehicle windows
Cleaning with water and air spray system special for vehicle cameras
Ran-flat tires (goes swamp)
Tear gas (OC solution) filtration system for high pressure cabin

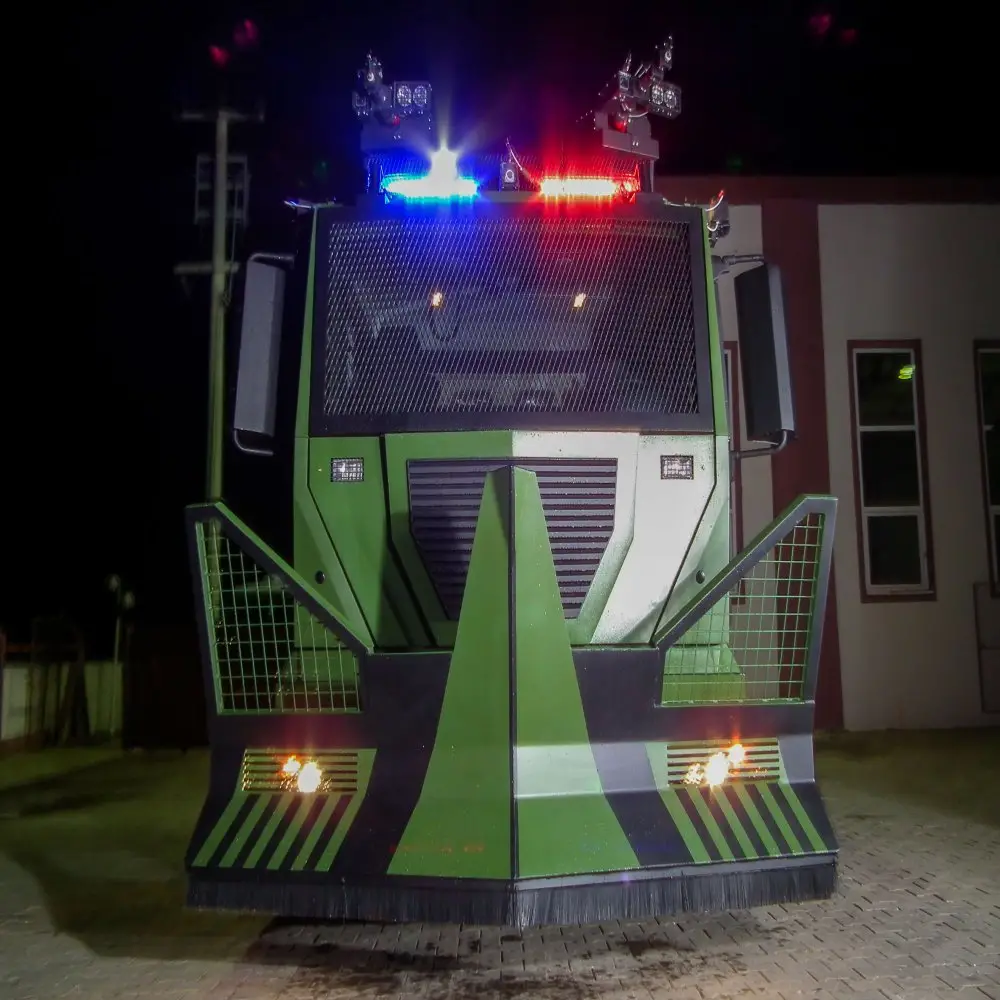

Barricade elimination capability with front bulldozer with command from inside the cabin
Effective sweeping capability with the front bulldozer brush system
Barricade removal and escape maneuverability with its commanded rear bulldozer from inside the cabin
Effective sweeping capability with the rear bulldozer brush system
Thanks to the bulldozers protected with fireproof paint, the cabin and the whole body, the ability to intervene against heat and flame without any problems
Plug system to prevent water leakage and flow after shooting in water cannons

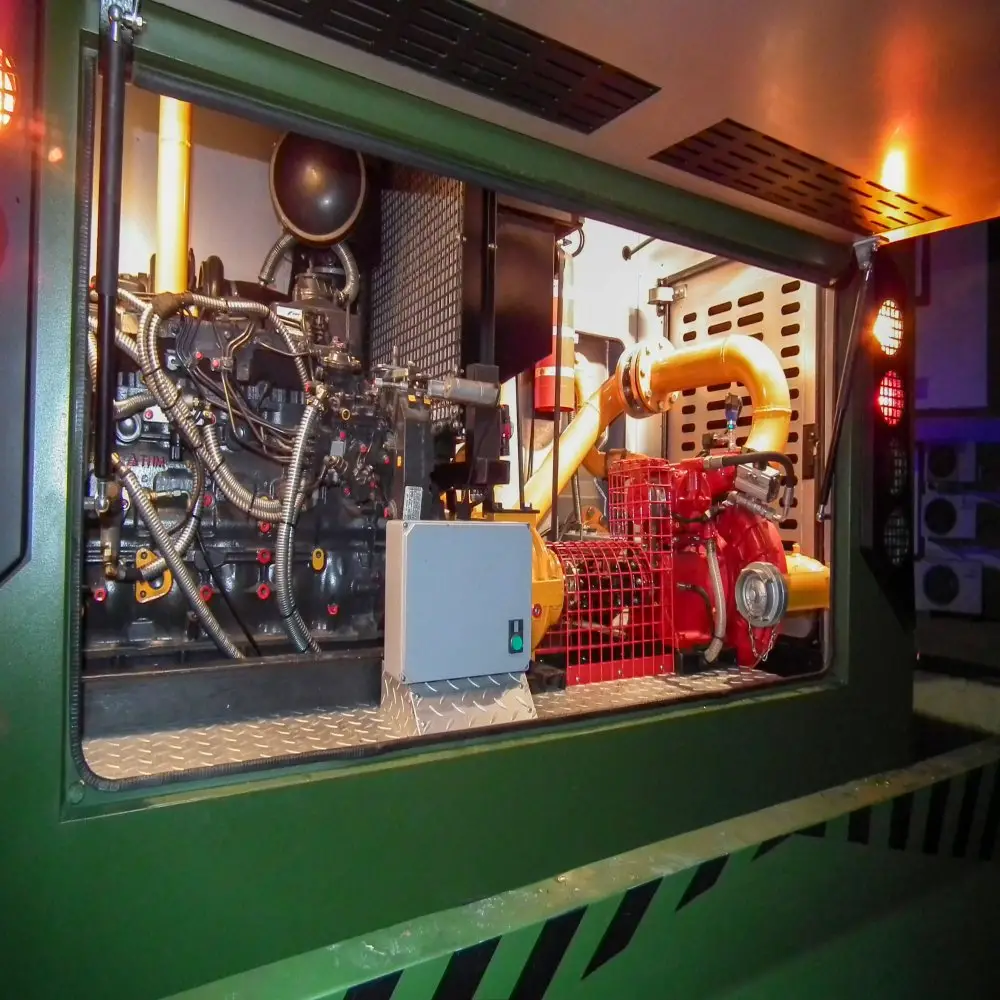

Dry chemical powder extinguisher system that is automatically activated in case of fire in the auxiliary engine and pump section

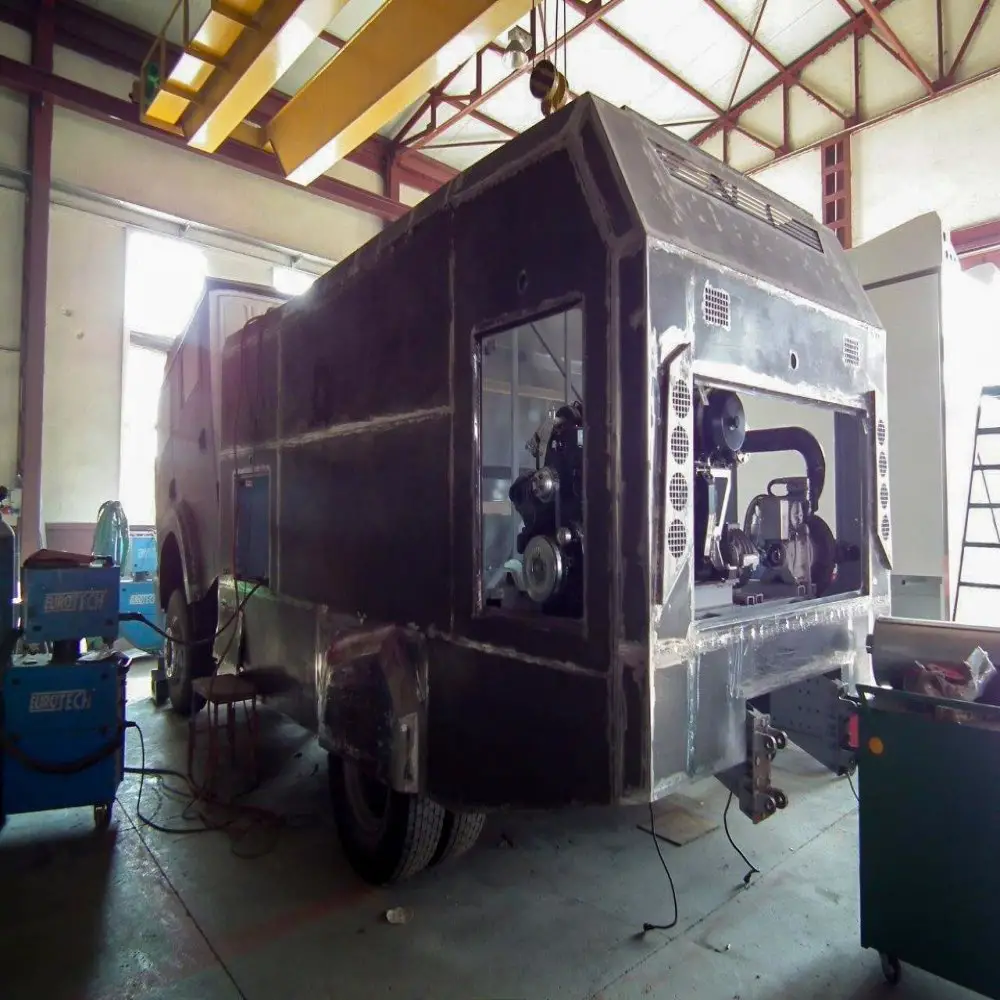

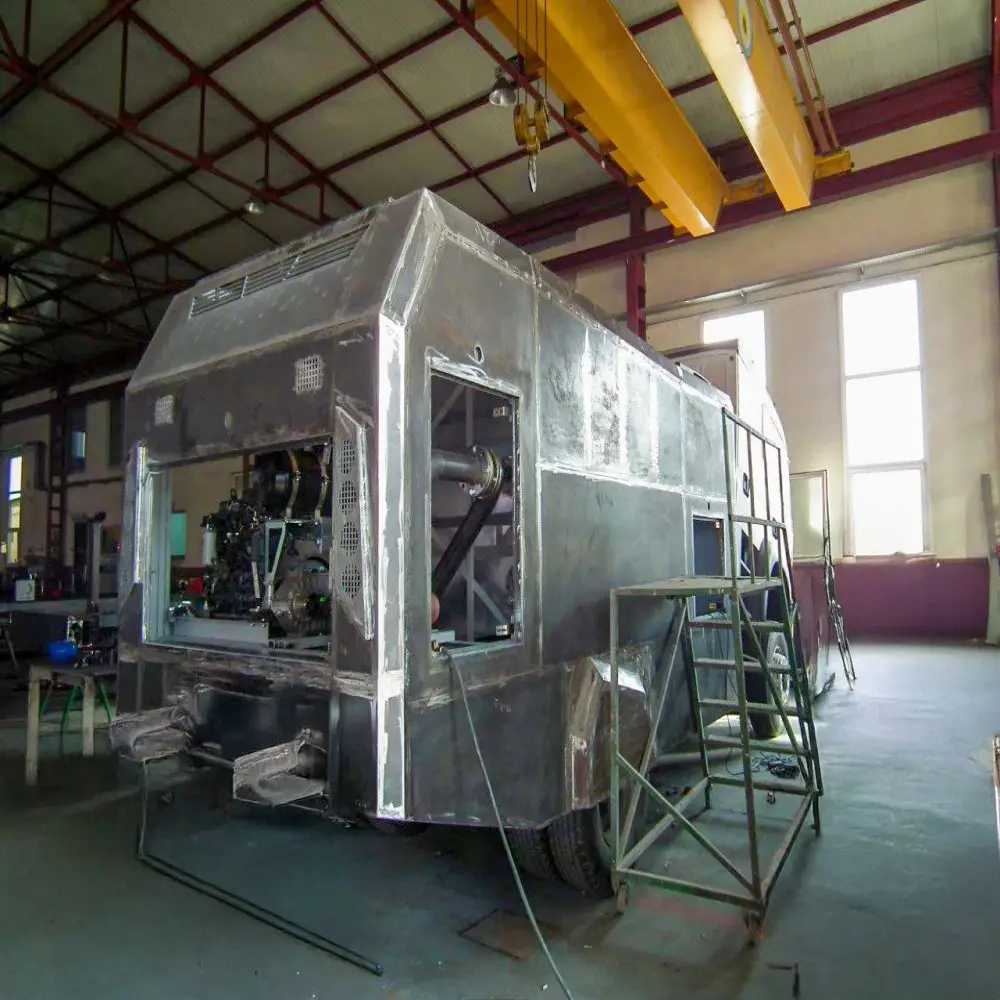

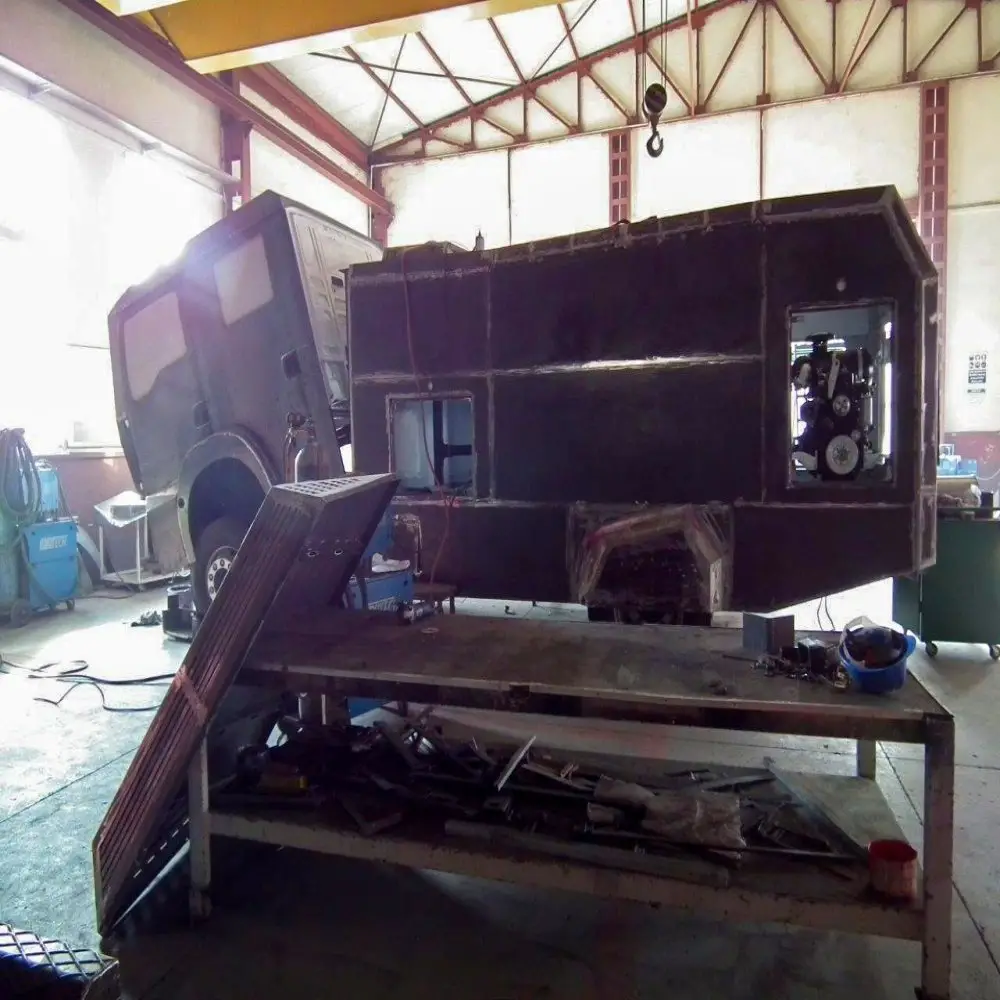

Modular body combined with a special flexible link and designed to prevent climbing on it
Piston opening rear fender designed for ease of tire maintenance
Slide-opening battery tray designed for ease of battery maintenance
Automatic cabin tilting designed for ease of maintenance in vehicle breakdowns
Possibility of using a manual hydraulic system designed for automated hydraulic system failures
Front bulldozer (Automatic or manual use)
Rear bulldozer (Automatic or manual use)
Windshield protection cage (Automatic or manual use)
Cab tilting (Automatic or manual use)
Two water cannons, each capable of throwing up to 1900 liters of water per minute
More personnel carrying capacity (1+5)
Thanks to the computer software reserve storage system, the upper and lower fire extinguishing system can work actively even when the water tank is empty.
Options for throwing water and mixture with weak and strong intensity in water cannon
TOMA SECURITY SYSTEMS
TOMA DEFENSE SYSTEMS
Fire protection with on-vehicle and under-vehicle fire extinguishing foam system
fireproof paint
Protective armored cages
armored hull
ballistic cabin
ballistic glasses
Ran-flat tires
Foam tank (150lt)
TOMA ATTACK SYSTEMS
Water balls (2 pieces)
front bulldozer
rear bulldozer
Gas nozzles located all around the vehicle to prevent demonstrators from approaching the vehicle
Water tank (6000lt), Gas tank (100lt), Paint tank (100lt)
